Luma Lab — Custom Fabrication

Acoustic Panel Configurator

Build your custom panel package. Select your quantities, then generate your quote instantly.

🔇
Studio-Grade Absorption
NRC 1.00 · High broadband absorption (ASTM C423 tested)
🔥
Fire-Conscious Construction
Class A acoustic materials (ASTM E84) · All surfaces fire retardant treated
✦
Premium Materials Only
Owens Corning 703 · Guilford of Maine
🎛 PANEL CONFIGURATOR — CLICK HERE

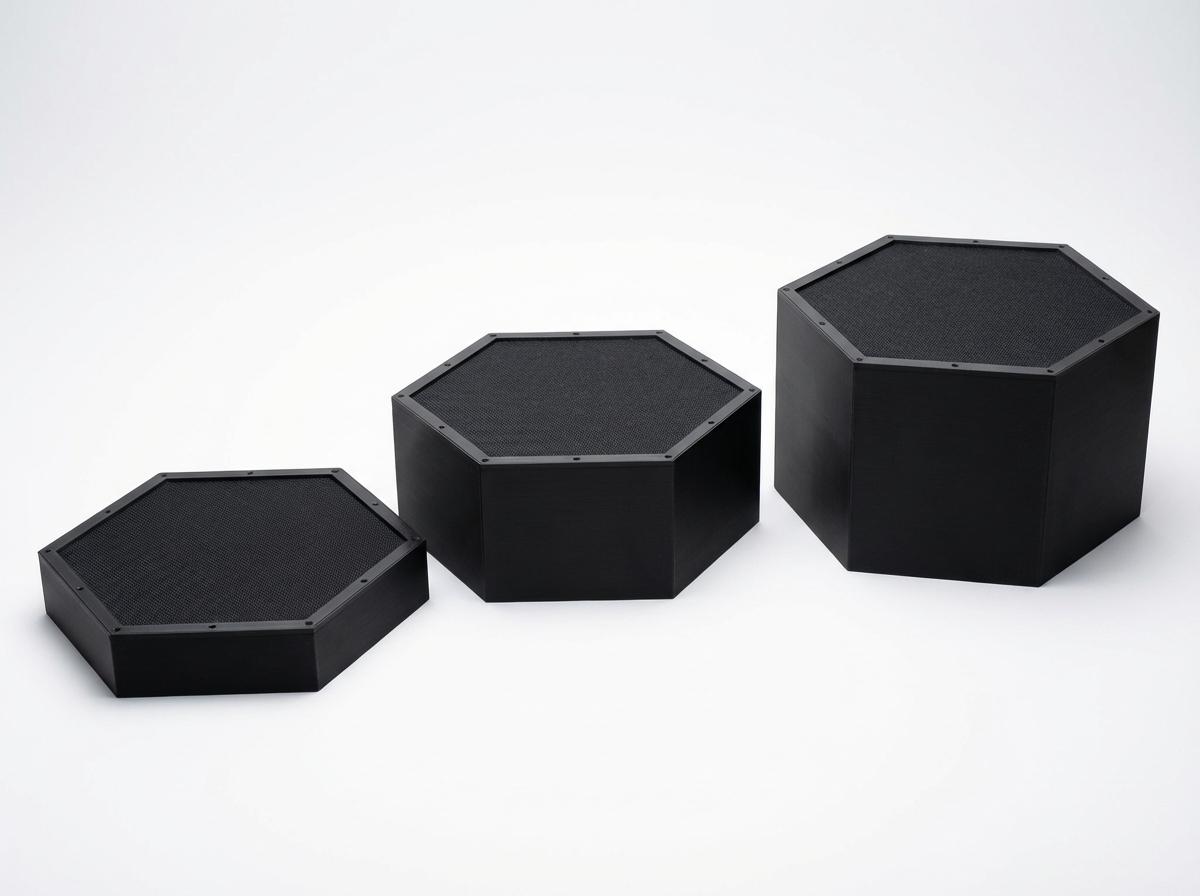

Panel Exploded View

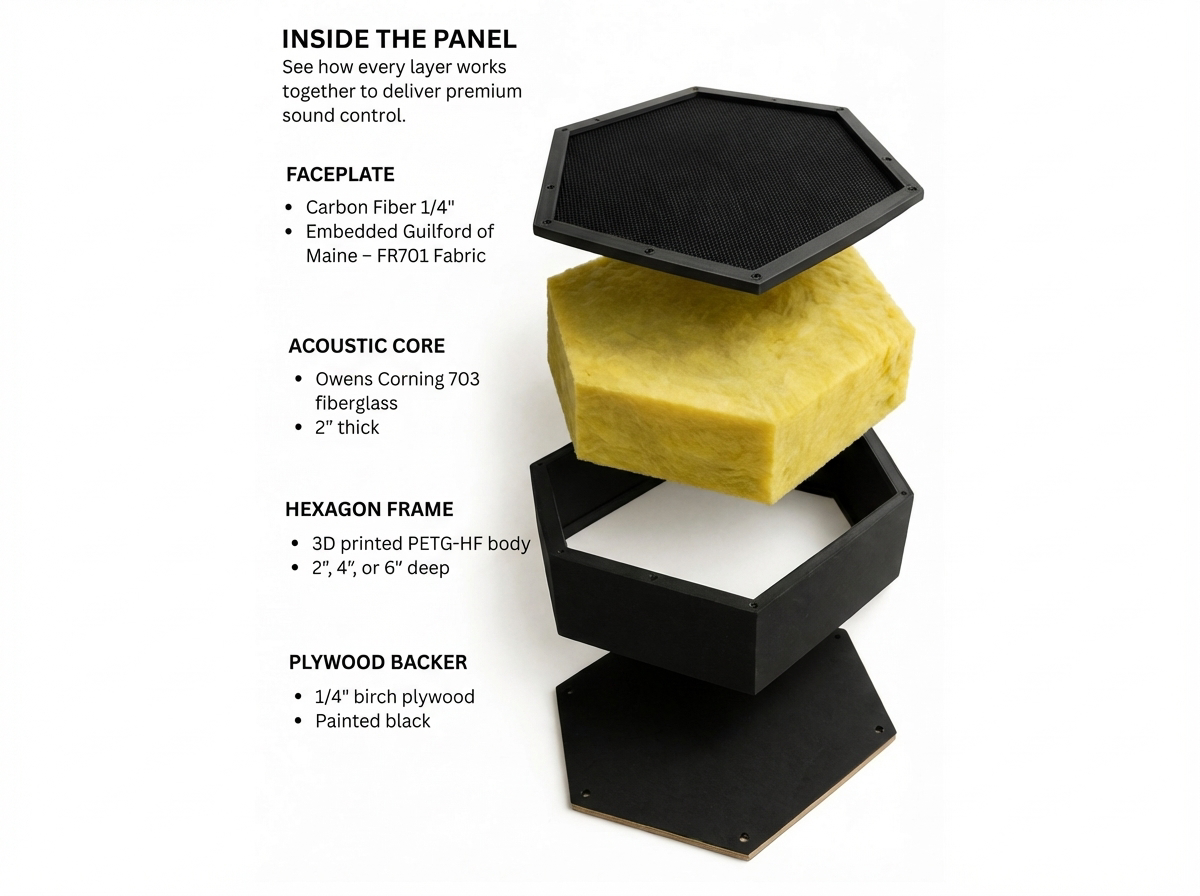

Material Layers

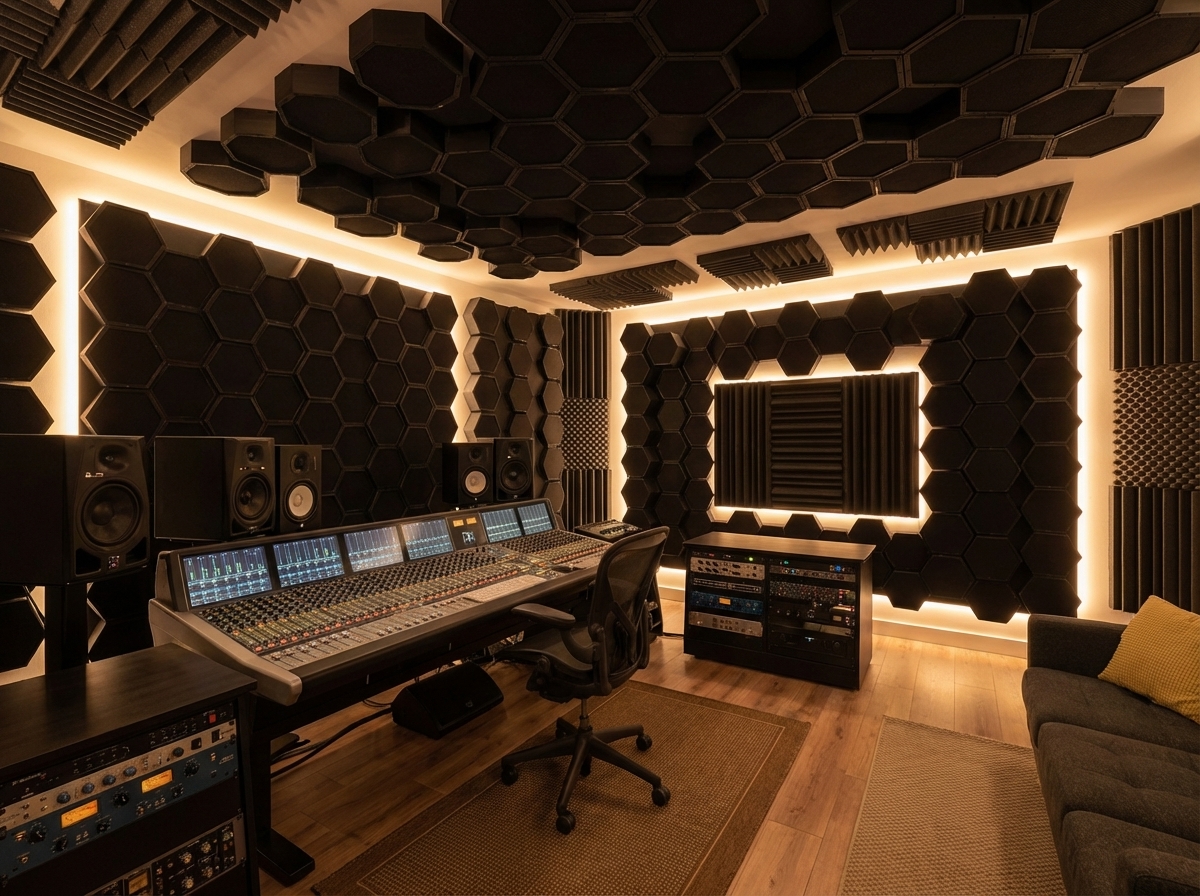

Installed Example

2" Panel

Mid & high frequency absorption

Maximum Absorption
NRC 1.00
Quantity
Per panel $110
18 × $110 $1,980

4" Panel

Broadband — absorbs all frequencies

Broadband + Low-Frequency
2" core + 2" cavity
Quantity
Per panel $155
12 × $155 $1,860

6" Panel

Deep bass control — the most absorption possible

Deepest Low-End Control
2" core + 4" cavity
Quantity
Per panel $210
12 × $210 $2,520

Panel Configuration Software

Drag-and-drop ceiling planner for positioning all panels

INCLUDED
Preset layouts for pink, brown, and white noise testing. Save and compare configurations. Print layouts for installation crew.
$99 FREE $0
$6,360
Package Total
42 panels
Total Panels
TECHNICAL SPECIFICATIONS

Panel Construction — Layer by Layer

Each panel is a precision-assembled stack of purpose-selected materials

01
Guilford of Maine FR701
Acoustic Fabric — Outer Surface
Fire RatingClass A — ASTM E84
Acoustic Transparency95% transparent — sound passes through to the core with minimal loss
Composition100% post-consumer recycled polyester
Colors Available62+ solid and heathered options
MaintenanceBleach cleanable, fade resistant
StandardIndustry #1 choice for acoustic panels for 40+ years
02
Owens Corning 703
Rigid Fiberglass Core — Acoustic Engine
Fire RatingNon-combustible fiberglass
NRC (2")1.00 — strong broadband absorption, mid through high frequencies (ASTM C423)
Density3 lb/ft³ — rigid, lightweight, no sagging
CompositionAverage 53% recycled glass content (per manufacturer spec)
Effective RangeStrong absorption from 250 Hz through 4000 Hz+ when flush mounted
Deeper Panels4" and 6" versions add air cavity behind the core for improved low-frequency behavior
StandardWidely used in professional acoustic treatment and commercial interiors
03
PETG-HF 3D Printed Frame
Structural Hexagonal Frame — Custom Fabricated
Fire BehaviorPETG does not sustain flame · All surfaces fire retardant treated before assembly
PropertiesHigh impact strength, chemical resistant, UV stable
FabricationPrecision 3D printed — 0.2mm layer resolution
Design13.25" wide × 11.5" tall hexagonal geometry — custom sculptural ceiling and wall layouts
Print Time3.5 hrs (2") · 7 hrs (4") · 10.5 hrs (6")
Post-TreatmentFire retardant coating applied before assembly
04
¼" Basswood Backing
Mounting Plate — Laser Cut
Fire TreatmentFire retardant spray applied and sealed during fabrication
FinishPainted matte black — clean, invisible from front
Cut MethodLaser cut for precision hexagonal fit
MountingPre-drilled for French cleat, Z-clip, or direct screw mount
Thickness¼" (6mm) — rigid, lightweight

Sound Absorption by Frequency

All panels use a 2" Owens Corning 703 core. Deeper panels add air cavity behind the core for improved low-frequency behavior.

2" Panel — flush mounted (NRC 1.00)
4" Panel — 2" core + 2" air cavity
6" Panel — 2" core + 4" air cavity
2" data from Owens Corning 700 Series product data sheet (ASTM C423, Type A mounting). Values above 1.00 are normal in reverberation chamber testing due to measurement effects such as edge diffraction. The 4" and 6" curves illustrate the expected improvement from adding air cavity depth — these are not independently tested for the assembled panel.

What Do the Frequencies Mean?

A plain-English guide to what each panel depth actually controls

125 – 250 Hz
Bass & Low-Mid
Room rumble, HVAC hum, bass from music systems, and crowd noise buildup. The 4" and 6" panels provide improved low-frequency control through the air cavity behind the acoustic core. The 2" panel has limited absorption in this range when flush mounted.
500 – 1000 Hz
Mid-Range
Human voice fundamentals, announcements, live speech, and musical instruments. All panel depths provide strong absorption across this range. This is where the 2" OC 703 core performs best.
2000 – 4000 Hz
High-Mid & Presence
Speech clarity, vocal projection, cymbal detail, and audio system presence. All panel depths provide strong absorption here. High-frequency control is consistent regardless of panel depth.

Questions about specifications, custom designs, or installation? Contact Luma Lab directly. All technical data sourced from manufacturer published specifications.

LUMA LAB
Custom Acoustic Panel Package
Valid 30 days
Package Total

Package Includes

✦ Custom 3D-printed hexagonal panel frames — 13.25" × 11.5" each
✦ Owens Corning 703 rigid fiberglass acoustic core — 2" depth, NRC 1.00 (ASTM C423)
✦ Guilford of Maine FR701 acoustically transparent fabric — Class A fire rated (ASTM E84)
✦ Laser-cut rear backing with mounting hardware — fire retardant treated
✦ Individual hand assembly, fire retardant treatment, and quality inspection
Each panel is individually fabricated using 3D-printed structural components, professional-grade acoustic materials, and premium fabric finishes. Pricing reflects material quality, acoustic performance, and the custom fabrication process. Installation available upon request and quoted separately.
